Contains low-level functions for parsing font files. Used by ReadFontsList and FontPlan. More...

#include <regex>
#include <fstream>
#include <unordered_map>
#include <mutex>
#include <set>
#include "read_font.hh"
#include "gunzip.hh"
#include "endian.hh"
#include "share.hh"

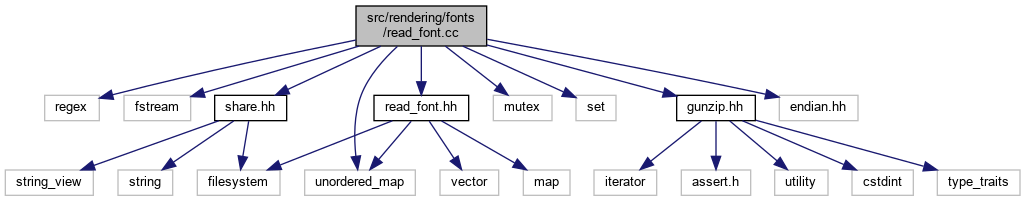

Include dependency graph for read_font.cc:

Classes
struct	PSFheader

Macros
#define	r(str) rmatch<__LINE__>(str##sv, mat, line)

Functions
std::vector< char32_t >	BDFtranslateToUnicode (int index, std::string_view reg, std::string_view enc)

std::string	ReadGZ (std::string_view filename)

PSFheader	ReadPSFheader (const char *data)

std::multimap< std::size_t, char32_t >	Read_PSFgzEncoding (std::string_view data, const PSFheader &h)

std::multimap< std::size_t, char32_t >	Read_PSFgzEncoding (std::string_view filename)

GlyphList	Read_PSFgz (std::string_view filename, unsigned, unsigned, std::string_view assume_encoding)

GlyphList	Read_BDF (std::string_view filename, unsigned width, unsigned, std::string_view guess_encoding)

GlyphList	Read_Inc (std::string_view filename, unsigned width, unsigned height, std::string_view guess_encoding)

GlyphList	Read_ASM (std::string_view filename, unsigned width, unsigned height, std::string_view guess_encoding)

GlyphList	Read_Font (std::filesystem::path filename, unsigned width, unsigned height, bool find, std::string_view guess_encoding)

Detailed Description

Contains low-level functions for parsing font files. Used by ReadFontsList and FontPlan.

Class Documentation

◆ PSFheader

struct PSFheader

Data that is read from the PSF file header.

Class Members
unsigned	charsize	Size in bytes of each glyph.
unsigned	fontlen	256 or 512
bool	hastable	If the font contains encoding table.
unsigned	height	Height.
unsigned	offset	Starting offset of data.
bool	utf8	If the codepoints are represented in UTF-8.
unsigned	width	Width.

Function Documentation

◆ BDFtranslateToUnicode()

std::vector<char32_t> BDFtranslateToUnicode	(	int	index,
		std::string_view	reg,
		std::string_view	enc
	)

Attempts to convert a character index into unicode using the given encoding.

Parameters

index	Character index to convert
reg	First part of encoding name (registry)
enc	Second part of encoding name (encoding)

If both reg and enc are supplied, they are joined with a dash. The following encodings are supported by built-in code: iso10646-1 and iso-8859-1: Index is returned verbatim jisx0201.1976-0: Conversion is done using built-in code

For any other encoding, a conversion table file is searched in share/encodings/. If the file is found, and the table contains information about this index, that table is used for the translation.

Additionally, indexes 00-1F and 7F are converted as in CP437; indexes 81-9F follow the CP/M plus character set with a shift. The result is an array that contains multiple choices for the encoding.

◆ Read_ASM()

GlyphList Read_ASM	(	std::string_view	filename,
		unsigned	width,
		unsigned	height,
		std::string_view	guess_encoding
	)

Reads an .asm format font file.

◆ Read_BDF()

GlyphList Read_BDF	(	std::string_view	filename,
		unsigned	width,
		unsigned	height,
		std::string_view	guess_encoding
	)

Reads a BDF format font file.

◆ Read_Font()

GlyphList Read_Font	(	std::filesystem::path	filename,
		unsigned	width,
		unsigned	height,
		bool	find = `false`,
		std::string_view	guess_encoding = `""`
	)

Locates a font file by the given name (

See also: FindShareFile), and attempts to detect its format and parses it using one of the Read functions listed above.

Parameters

filename	File to read
width	Width of glyphs in the font
height	Height of glyphs in the font
find	If true, uses FindShareFile to locate the file. If false, just reads the given path.
guess_encoding	Guessed encoding for the font.

See also: BDFtranslateToUnicode

Returns: List of glyphs found in the font.

◆ Read_Inc()

GlyphList Read_Inc	(	std::string_view	filename,
		unsigned	width,
		unsigned	height,
		std::string_view	guess_encoding
	)

Reads an .inc format font file.

◆ Read_PSFgz()

GlyphList Read_PSFgz	(	std::string_view	filename,
		unsigned	width,
		unsigned	height,
		std::string_view	guess_encoding
	)

Reads a PDF.gz format font file.

◆ Read_PSFgzEncoding()

std::multimap<std::size_t, char32_t> Read_PSFgzEncoding ( std::string_view filename )

Reads a character encoding table from a PSF.GZ file.

◆ ReadGZ()

std::string ReadGZ ( std::string_view filename )

Reads a GZIP-compressed or deflated file and decompresses it using TinyDeflate.

Returns: Decompressed contents.
