Features

Supported:

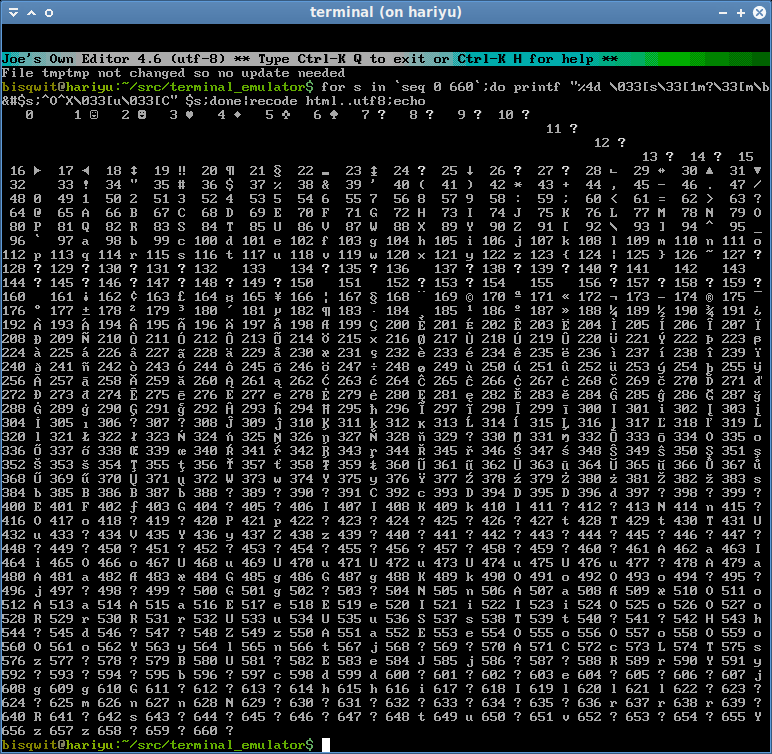

Dozens of built-in fonts (covering the entire basic multilingual plane of Unicode and then some)
Single-width and double-width characters (such as CJK + English text)
Automated input
Resizing of terminal dimensions / font size at any time
Way more terminal escape codes than a typical user will ever depend on

Not supported (yet!)

Copy and paste
User-supplied fonts
Configuration of key features without recompiling source code
Bidirectional rendering (such as Arabic and Hebrew)
Combining diacritics
Letters that change shape depending on position in word (such as word-final glyphs in Hebrew)

This program is designed for programming video production purposes.

Installation instructions

A version of GCC that supports c++20 (GCC 10 or later)
pkg-config
libsdl2-dev
libx11-dev
make
googletest-tools (for unit testing)
lcov (for coverage testing)

To install these dependencies in Debian GNU/Linux, you can use this command: apt-get install build-essential libsdl2-dev pkg-config libx11-dev googletest-tools lcov g++-12 (instead of 12, use what your system has available)

Check out the code from Git:

git clone https://github.com/bisqwit/that_terminal
cd that_terminal
git checkout origin/hy -b hy
git submodule update --init --recursive # Do not forget this step!

NOTE: If you use the .tar.gz or .zip from the release archive, it is missing the code for submodules. You have to manually checkout them. This is a known problem with Github. The recommended way is to download sources from the Git repository as instructed above.

To compile, type make -j4. To run, type ./term after compiling. Note that on the first start, the terminal may be slow to start, because it rebuilds the cache for fonts.

NOTE: If make is unable to execute g++, or you get errors with unrecognized option -std=c++20, edit the first line in Makefile and change g++ to g++-10 or later. This is because your distribution defaults to a too old version of GCC, that is unsupported by that terminal.

To build a debugging version, do make term_debug.
To build a profiling version, do make term_gprof.
To build and run unit+coverage tests, do make test (see testing).
To build a manual coverage testing version, do make term_gcov.

NOTE: When compiling, you may get a “__cur could be NULL” warning from the static analyzer of the compiler with reference to a vector<Cell>. This warning is bogus and should be ignored. You may also get warnings about “#pragma omp” lines. These lines are related to OpenMP, which is disabled in all but the production and debugging builds.

Compilation of modules within rendering/fonts module may take significant time. This is mainly because of the use of std::regex, which slows down compilation significantly.

Documentation

Instructions of use

Once you start the terminal, you can use the terminal according to how terminal emulators generally are used, by typing text.

There are a few special hotkeys supported by the emulator. These are documented in a separate document.

To quit the terminal emulator, either command the shell to exit (usually by typing exit and enter), or command the window manager to terminate the program (either by clicking the close-icon in the window title bar, or by entering a hotkey such as alt-F4).

What is a terminal emulator?

A terminal emulator is a program that emulates a terminal.

A terminal is a device or a program that connects two things:

user-interface (typically keyboard and screen)

a system (typically a local or remote shell, or a BBS) that reads input and writes output (standard input and standard output respectively).

This communication is entirely text-based, and includes in-band signaling like the ANSI escape codes.

A terminal emulator converts keyboard input (including arrow keys) into a character stream, and reads character stream from the application and converts that into symbols, cursor movements, and colors, on the screen.

What is terminal emulator <em>not</em>?

A terminal emulator is not a shell nor a command interpreter. It does not understand anything you type. It just converts those keys into a character stream and passes them to another program that hopefully does understand them.

Why is it called an “emulator”?

Back in the early ages of computing, computers were extremely expensive. The typical architecture was such that you had one central computer, and a number of dumb terminals (and later, smart terminals).

These terminals were devices that… «drum roll»… translated between the user-interface and the input & output of the central computer. They had no computing capabilities of their own.

Over time as computers became cheaper, it became possible to run these text-based systems locally. The local computer then ran a terminal emulator to interface with these local systems, that still communicated using text streams.

The emulator emulates the terminal such as the VT100. The VT100 was a remarkable milestone in the history of glass screen based terminal emulators, started by the Datapoint 3300 and the DEC VT05. These devices were a giant’s leap of improvement over using a line printer for the display device.

Even in today’s time, many decades later, the system of combining a text-based stream and a terminal emulator remains a useful and efficient paradigm, and really, the de-facto way to maintain UNIX-style systems. Some people, such as yours truly, even use it as their primary user-interface for most tasks on the computer.

Even the Microsoft® Windows® Command Prompt utilizes a terminal emulator (Win32 Console), even though the division between console programs and the terminal emulator is not as obvious in Windows as it is in UNIX-style systems like Linux.

Modern terminal emulators not only emulate historic terminals like the VT100, VT220, VT240, VT340, VT420, and VT525, but also support other ANSI escape codes that have been created specifically for terminal emulators, such as the 256-color and 16777216-color SGR parameters, which are supported by my program as well.

What is <em>this</em> terminal emulator used for?

It is a tool I use for creating videos. It is supposed to replace the DOSBox-based toolchain I have used until now. The input daemon is similarly being replaced, as is the tool that I use for generating the input in the first place.

It also seeks to make that editor obsolete, replacing it with Joe.

Why do you need a custom terminal? Why not Xterm?

I need something that I can customize for artistic reasons, even if that breaks compatibility with other programs.
I also need to be able to change fonts and terminal sizes at whim with simple keyboard inputs (mouse input is too delicate to script).
And I need to record video while doing that. This is a video production tool after all.

Supported fonts

This terminal emulator fully supports single-width and double-width characters (such as CJK). The best font sizes to try that are 4x8, 6x9, 8x16, and 9x18, because they match perfectly with the CJK fonts at 8x8, 12x9, 16x16 and 18x18 at integer scaling. The 8x16 (+16x16) font has best coverage for Unicode, thanks to Unifont.

Author

That terminal is written by Joel Yliluoma. You can find my homepage at: https://iki.fi/bisqwit/ And you can contact me through e-mail: bisqw.nosp@m.it@i.nosp@m.ki.fi
